Model: IRO87

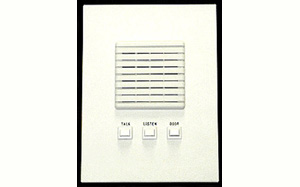

IRO87 Steel 4-Wire Apt. Flush Mounts over existing Flush backboxes. Features plastic push-buttons and ABS plastic speaker grille.
The IR087 apartment stations are designed specifically for renovation use and are large enough to cover the area occupied by most existing intercom units, making repainting unnecessary.
The reduced wiring requirement permits using the existing wiring (if in good condition), while the advanced electronic design permits use in large or small buildings.
A wide variety of optional accessories is available to provide additional functions such as multi-entrance operation, post office door release, and magnetic (fail safe type) door release capabilities.
Features:
• Simple push button operation
• Automatic privacy
• Easy installation
• Oversized station covers most openings
• Attractive White station with Steel faceplate
Specifications:
Dimensions: Height: 8.75" (222mm)
Width: 6.50" (165mm)
Projects: 0.50" (13mm) from mounting surface
Construction: Steel face plate with white vinyl coat
Controls Individually replaceable push-buttons with self-wiping plated contacts. Identified for TALK, LISTEN and DOOR functions.
Speaker/Mic: 3.50" (89mm) with voice response. Also used for electronic tone signal.
Mounting: Mounting holes may be positioned to accommodate an existing back box. Supplied without mounting holes (unless requested at time of order. |
